Onyx v3 > Services

Onyx is a service container. Services are contained in the service naming service and directory. Onyx implements its own JNDI.

Initial Context Class implementation: com.onyx.jndi2.ServiceInitialContext

This initial context accepts POJO and transforms them as service.
This service are exposed via REST and JMX. (XML-RPC and SOAP are in project). They can be private or public.

Tutorial:

1) Creation of the POJO:
public static class Hola {
   protected int value = 0;
   public Hola(){
      this.value = 12;
   }
   public int getValue(){
      return value;
   }
   public void setValue(int value){
      this.value=value;
   }
}

2) Registration of the POJO in the Onyx Context:
import com.onyx.jndi2.ServiceInitialContext;

...
ServiceInitialContext context = new ServiceInitialContext();
context.bind("hola", new Hola());
The POJO Hola is now a service registered under the name "Hola".

3) Access to the service Hola
There is several ways to access this service.

a) via JMX:
First, we need to create the service interface to the object. (you can find it in the onyx service browser at http://localhost:9900)
package com.onyx.service;

public interface Hola {
   public int getValue();
   public void setValue(int i);
}

Now, let s access the JNDI and get a reference on the service "Hola":
Hashtable env = new Hashtable(); //initial context classname
env.put(Context.INITIAL_CONTEXT_FACTORY,"com.onyx.jndi2.ServiceInitialContextFactory");
//jmx url of the onyx jndi
env.put(Context.PROVIDER_URL,"jmx://localhost:9901");
// username to access the jndi (defined in the jndi.properties)
env.put(Context.SECURITY_PRINCIPAL,"username");
// password to access the jndi (defined in the jndi.properties)
env.put(Context.SECURITY_CREDENTIALS,"password");
// Creation of the Initial Context
InitialContext context = new InitialContext(env);

// we get a reference on the service Hola com.onyx.service.Hola hola = (com.onyx.service.Hola)context.lookup("hola");
hola.setValue(100);
int val=hola.getValue();
System.out.println(val);


b) via REST:
Example:
http://localhost:9900/hola.getValue()
http://localhost:9900/hola.setValue(100)

The authentication window will popup if credentials are needed, or you can include your credentials in the URL directly.


3) Browse the current services:
If you want to know what current services are registered in the system. You can use the monitor tool or the service webpage.

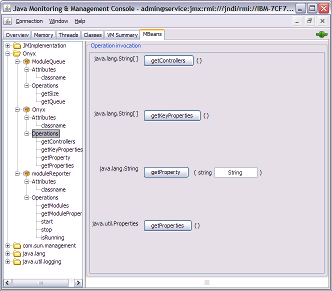

- Monitor tool:
Go to bin directory and launch the monitor tool: Monitor.[bat|sh]

Go to the Mbeans repository, you will find the services under the Onyx node.

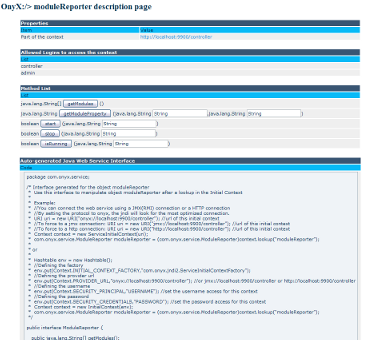

- Service webpage:
Open your favorite web browser and type http://localhost:9900.
The service webpage will show up, you can then browse the service tree.
